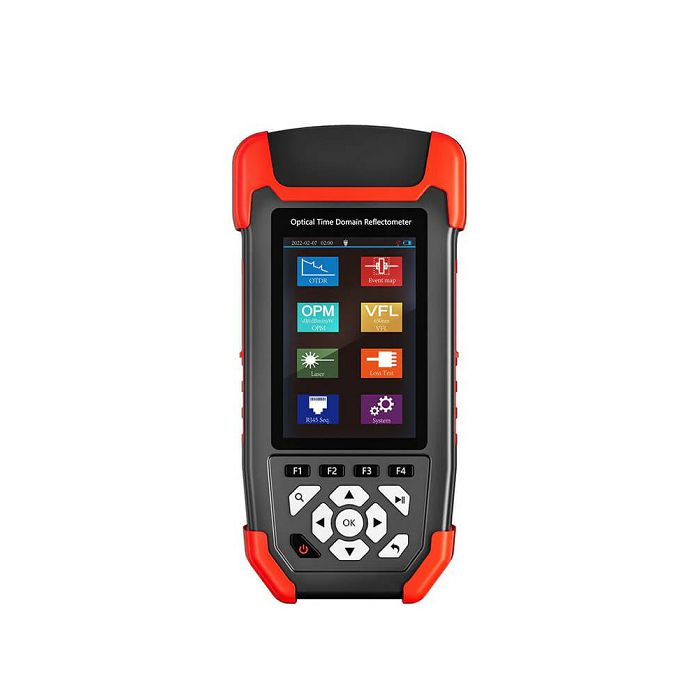

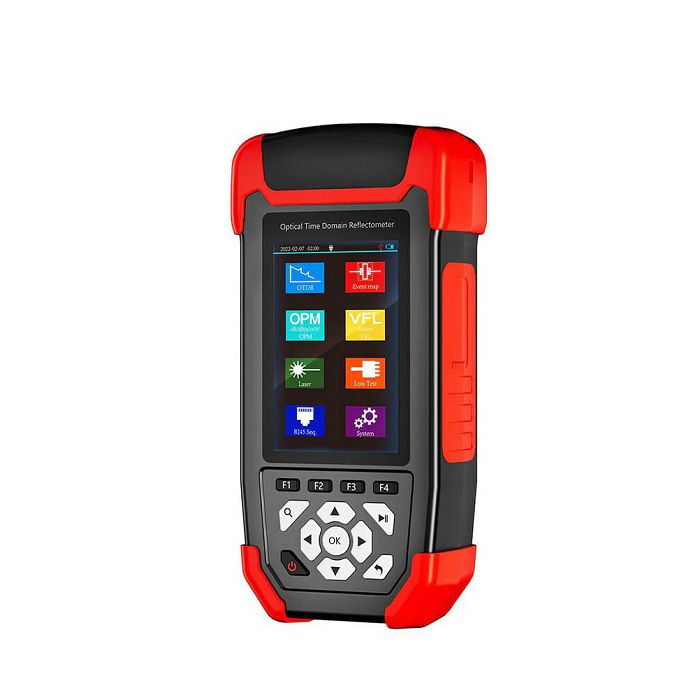

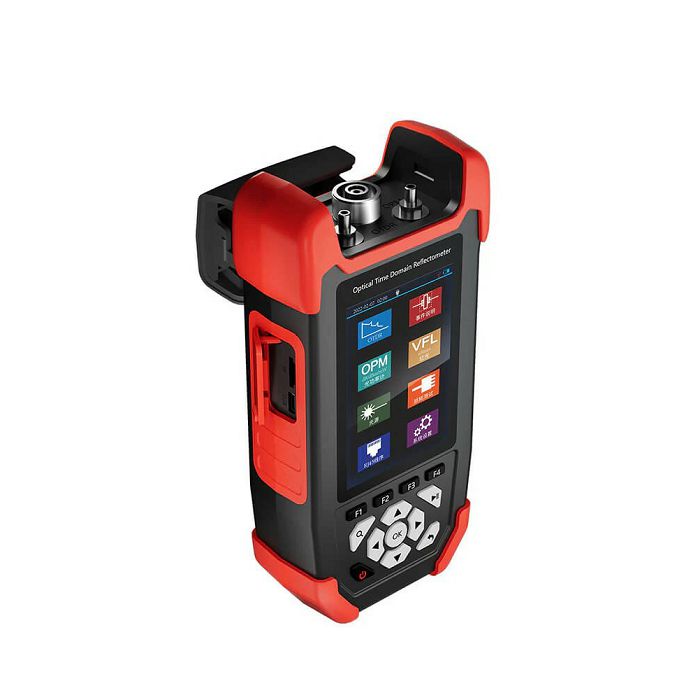

NF-981 OTDR tester s VFI/OPM/LS i RJ45 testerom sekvence
Značajke:
• OTDR single mode 22/20DB, testni domet 80 kilometara, SC/PC ili FC/PC optičko sučelje
• Inteligentna analiza optičke veze - OTDR software omogućuje izvješća o ispitivanju (Reflective Event, Reduce Event, Fiber Splitter, Fiber End)
• OPM - Raspon ispitivanja optičke snage -50~+26dBm, šest valnih duljina
• VFL - izlazna snaga crvenog svjetla 10mW
• Wire Mapping - Ispituje greške kratkih spojeva, otvorenih krugova i križanja u LAN kabelima.
• Test duljine - Mjeri duljinu do 1-600 m
• Svjetlo - Pruža pouzdan izvor svjetla u slabom radnom okruženju
• Punjiva baterija - vrijeme na čekanju baterije je veće od 11h, testirano oko 6h, kapacitet baterije 4000mAh, punjenje Micro USB 5V/2A
SPECIFIKACIJA
OTDR
Wavelength: 1310/1550nm
Fiber Type: G.652 SM Fiber
Dynamic Range: 24dB/22dB
Event Blind Zone : 10m
ATT Blind Zone: 15m
Test Range: 10m-60km
Pulse Width: 5ns-10us
Ranging Accuracy: ±(1m+Sampling Interval+0.005%xTest Distance)
Loss Accuracy: ± 0.2dB/dB
Sampling Points: 16k-128k
Sampling Resolution: 0.05~8m
Reflection Accuracy: ±3dB
Data Storage: Internal: 2600: External: TF Card
Laser Safety Level: Class Il level
File Format: SOR Standard File Format
Connector: FC/PC (Interchangeable SC?ST)or FC/APC (Interchangeable SC, ST)
OPM TEST
Wave Range: 800nm-1700nm
Interface Type: Universal Joint FC/SC/ST
Test Range: -50dBm~+26dBm
Uncertainty:+5%
Frequency Identification: CW/270/330/1k/2kHz
Calibration Wavelength: 850/1270/1300/1310/1490/1550/1577/1625nm
LS – LASER SOURCE
LD Type: FPLD
Output Wavelength: 1310/1550nm
Output Power: 2-5dBm
Modulation Frequency: 270/330/1k/2kHz
Stability: CW,+0.5dB/15min (Test after15mins of preheating)
Connector: FC/PC (Interchangeable SCST) or FC/APC (lnterchangeable SC,ST)
VFL TEST
Work Wavelength: 650nm?20nm
Output Power: 10mW
Mode: CW/1Hz/2Hz
Connector: FCISC/ST
Other Parameters
Dispaly: 3.5 inch Color LCD
Data Interface: Micro USB
External Storage: TF Card
Power Supply: Polymer Li-battery 3.7V, 4000mAh
Power Adapter: 5VDC, 2A
Battery Life: Standby>20h;
Measuring Time: >12h
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+70°C
Relative Humidity: 0~95%

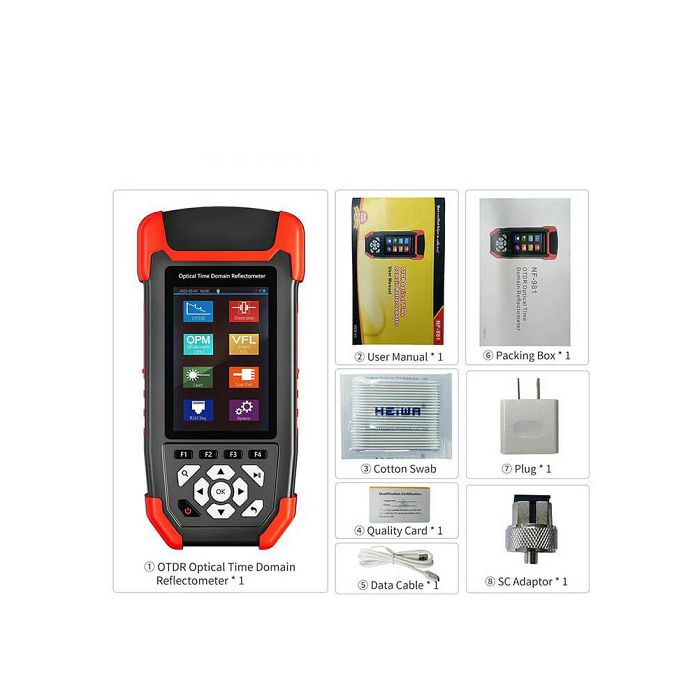

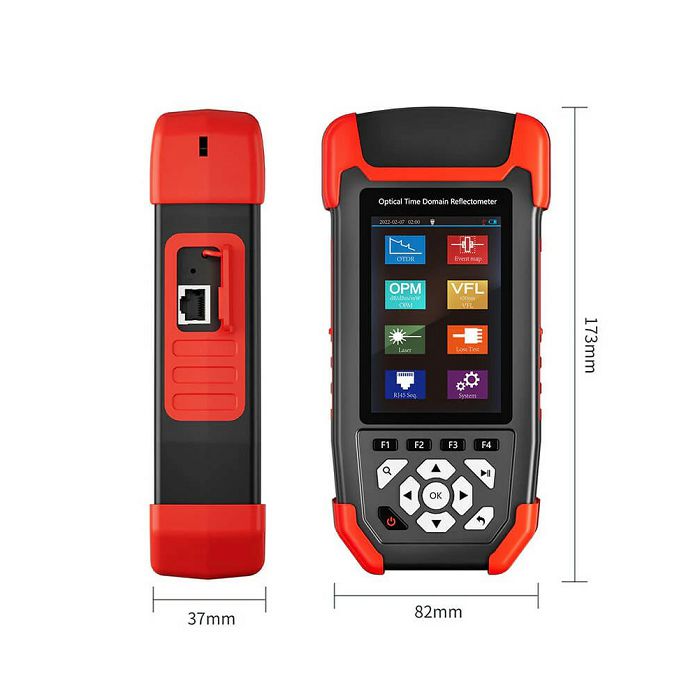

Non Condensing Dimension: 173mmx82mmx37mm
Weight: ?350g

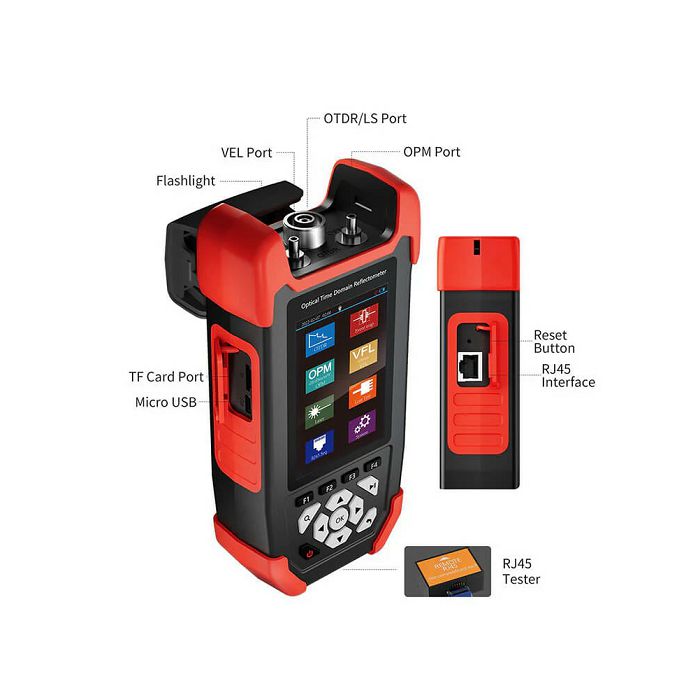

RJ45 Sequence Test
SVJETLO

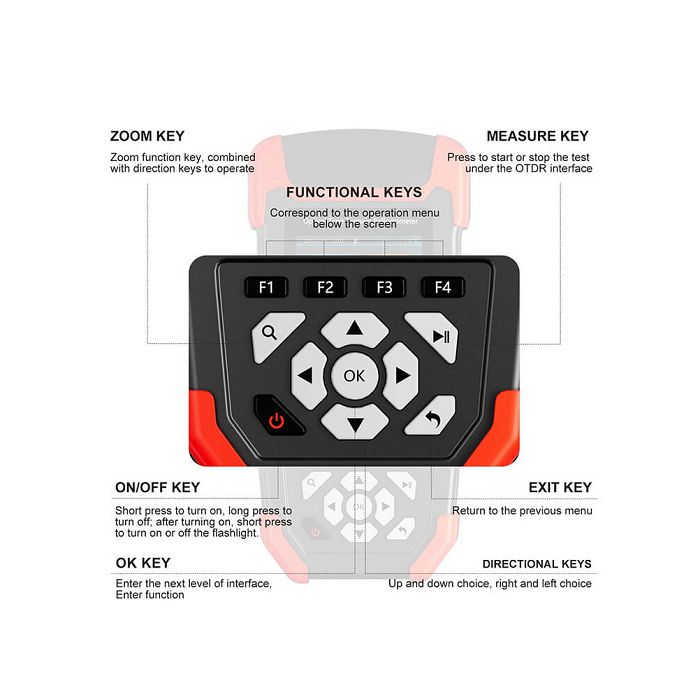

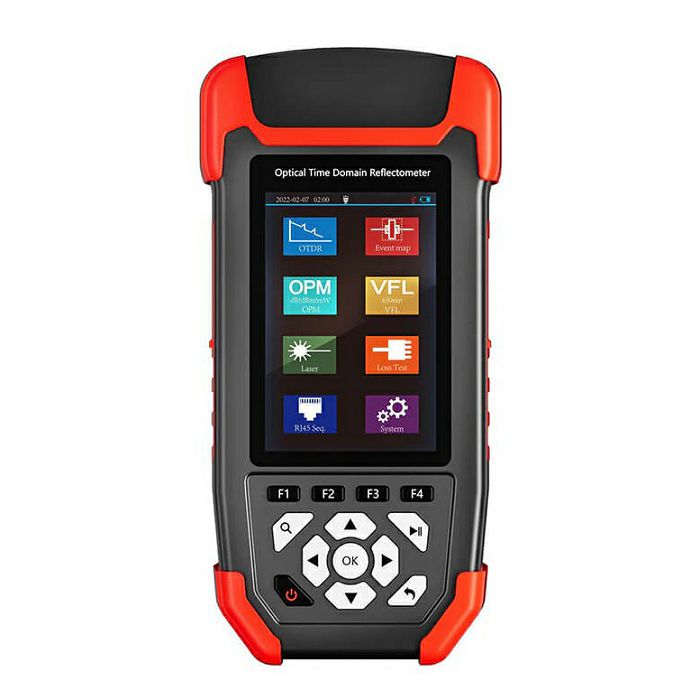

PRIKAZ SUČELJA
PUNJIVA BATERIJA
Polymer Li-battery: 3.7V,4000mAh Power
Adapter: 5VDC,2AStandby>20h
Measuring Time>12h
